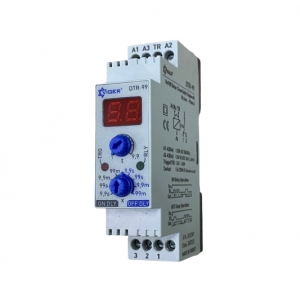

DTR-99
DTR-99 triggered digital timer with ON and OFF delay is designed to be used wherever time dependent control is required.
Features
- Operating Voltage : 230V AC (A1-A2) or 24V AC/DC (A2-A3)
- 0,1sec. – 99 minutes. (Adjustable)
- with Trigger
Technical specifications
| Operating Voltage (A1-A2) | 230V AC 50/60Hz |
| Operating Voltage (A2-A3) | 24V AC/DC (A2(-), A3(+)) |
| Trigger Voltage (TR) | 24V – 240V |
| Operating Power | <6VA |
| Operating Temperature | -20°C…..+55°C |
| Working time Range (t) | 0,1sec. - 99 min |
| Display | 1x2 LED Display, 2x LEDs |
| Connection Type | Assembled on the din rail |
| Weight | 220gr |
| Contact | 5A 250V AC Resistive Load |
| Operating Altitude | <2000m |
| Cable Diameter | 2,5mm2 |
Dimensions

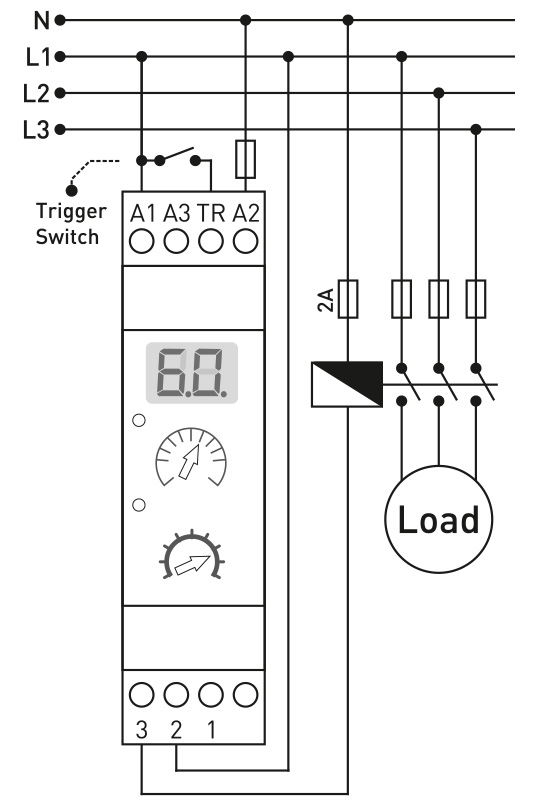

Wiring diagram
