P1-PAV
Voltage control relays are designed to protect devices with sensitive operating voltage from damage caused by mains voltage.
Features
- Over Voltage : 230V – 300V AC (Adjustable or Can Be Disabled)
- Under Voltage: 140V – 210V AC (Adjustable or Can Be Disabled)
- Error Waiting Time : 0,1sec. – 20sec. (Adjustable)
- Reset Time : 0,1sec. – 20sec. (Adjustable)
- Phase Sequence Control
Technical specifications
| Operating Voltage | 380V AC 50/60Hz |
| High Voltage | 230V-300V |
| Low Voltage | 140V-210V |
| Delay Time | 0,1 set. - 20sec |
| Reset Time | 0,1 set. - 20sec |
| Operating Power | <6VA |
| Operating Temp | -20°C…..+55°C |
| Display | 4x LEDs |
| Connection Type | Assembled on the din rail |
| Weight | 0,210 kg |
| Contact | 5A 250V AC Resistive Load |
| Operating Altitude | <2000m |
| Cable Diameter | 2,5mm2 |

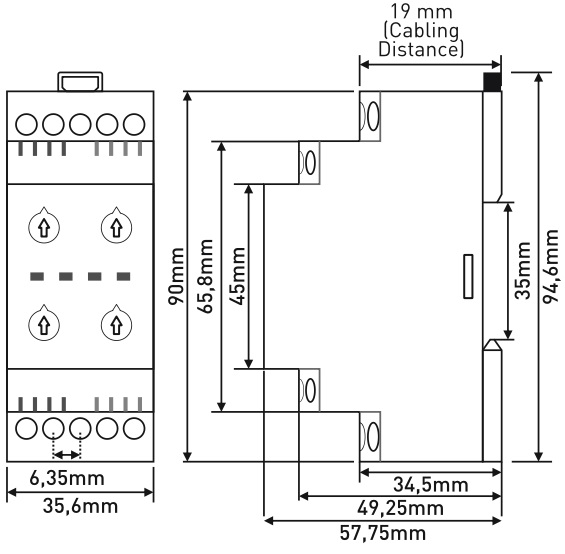

Dimensions

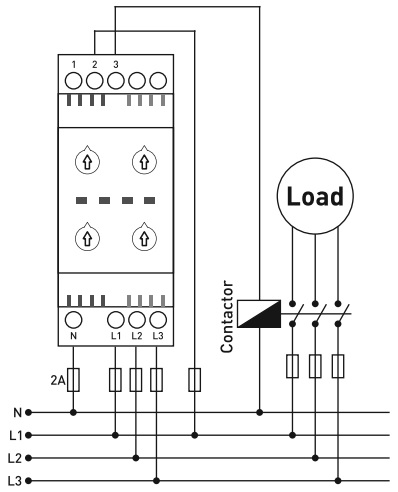

Wiring diagram
