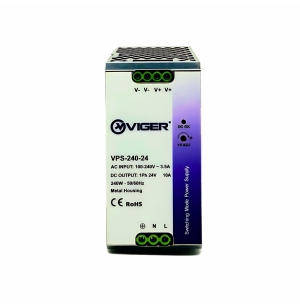

POWER SUPPLY VPS-240-24

Product Application：Industrial control system,mechanical and electrical equipment, electronic instruments, industrial automation, etc.

Approvals

Standard:

EN61000-4-2,3,4,5,6,8,11\GB17625.1\EN61000-3-2,-3\EN55032\GB4943\UL62368-1\IEC62368-1

Product Description

VPS-240-XP is an economical DIN-rail power supply with 240W single channel output. It can be installed on DIN rain TS-35/7.5 or TS-35/15. The input voltage range is 90-264 VAC, and the output voltage is 24V,48V etc. It can be applied to various industrial fields such as industrial control system, mechanical and electrical equipment, electronic instruments, industrial automation, etc. The ultra-high efficiency and good heat dissipation guarantee the long-term stable work of this series of products.

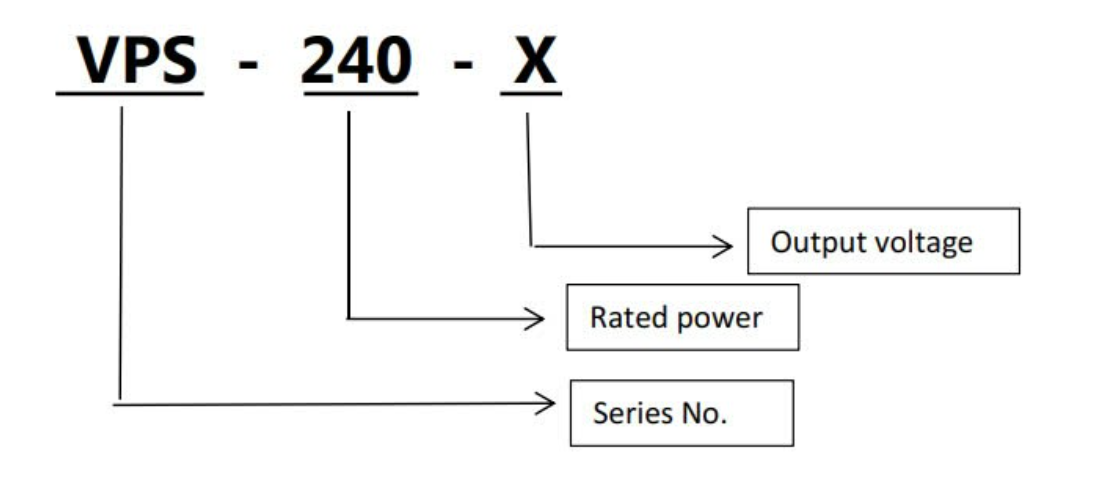

Product Name:

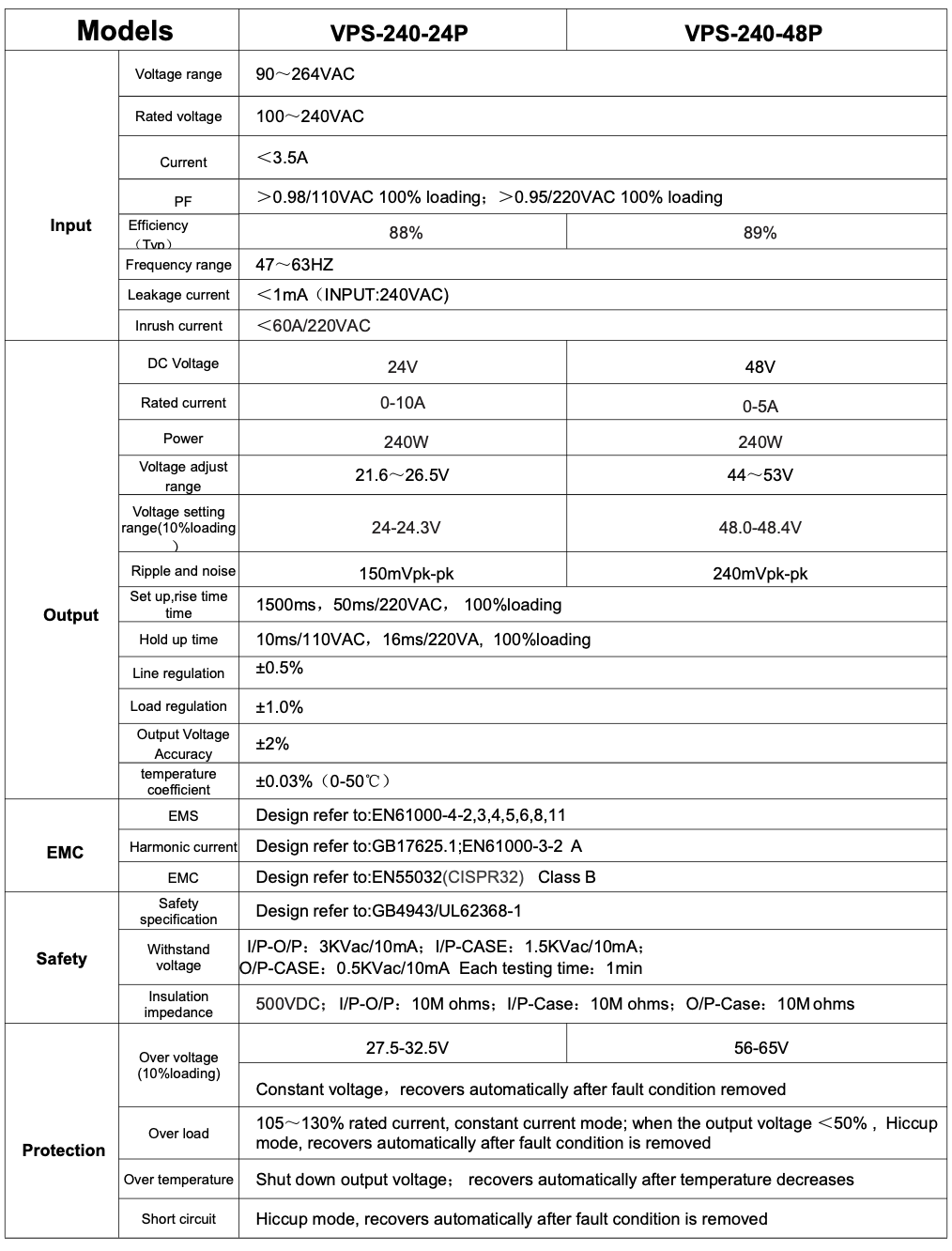

Electrical parameters
