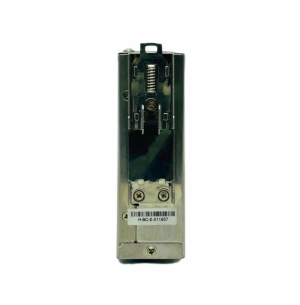

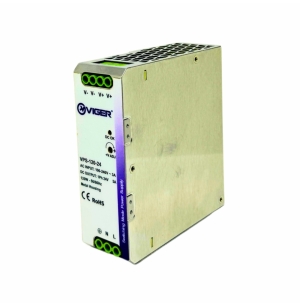

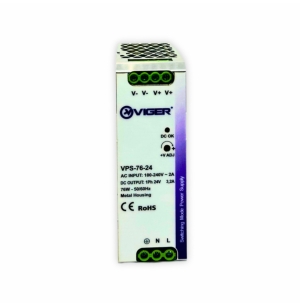

POWER SUPPLY VPS-76-24

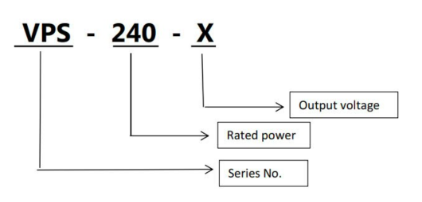

Models

VPS-76-12

VPS-76-24

VPS-76-48

Input

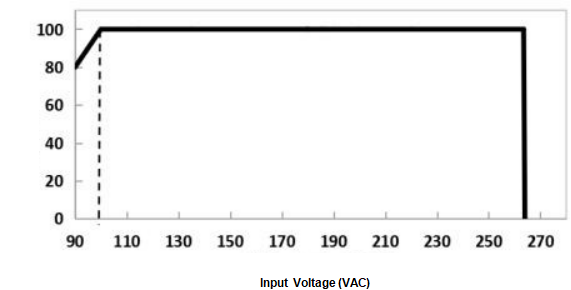

Voltage range

90～264VAC

Rated voltage

100～240VAC

Current

＜3A@100VAC

Efficiency（Typ）

82%

84%

86%

Frequency range

47～63Hz

Leakage current

＜1mA@240VAC

Inrush current

＜65A@220VAC

Output

DC Voltage

12V

24V

48V

Rated current

0-6.25A

0-3.15A

0-1.6A

Power

76W

75.6W

76.8W

Voltage adjust range

10.8～13.2V

21.6～26.5V

44～53V

Voltage setting range(10% loading）

12.0-12.2V

24-24.3V

48.0-48.4V

Ripple and noise

120mVpk-pk

150mVpk-pk

240mVpk-pk

Set up,rise time time

1500ms，50ms/220VAC，100%Loading

Hold up time

10ms/110VAC，16ms/220VA, 100%Loading

Line regulation

±0.5%

Load regulation

±1%

Output Voltage Accuracy

±2%

Temperature coefficient

±0.03%（0-50℃）

EMC

EMS

Design refer to:EN61000-4-2,3,4,5,6,8,11

Harmonic current

Design refer to:GB17625.1;EN61000-3-2 A

EMC

Design refer to:EN55032(CISPR32) Class B

Safety

Safety specification

Design refer to:GB4943/UL62368-1

Withstand voltage

I/P-O/P：3KVac/10mA；I/P-CASE：1.5KVac/10mA； O/P-CASE：0.5KVac/10mA Each testing time：1min

Insulation impedance

500VDC；I/P-O/P：10M ohms；I/P-Case：10M ohms；O/P-Case：10M ohms

Protection

Over voltage (10%loading)

13.8-17V

27.5-32.5V

56-65V

Constant voltage，recovers automatically after fault condition removed

Over load

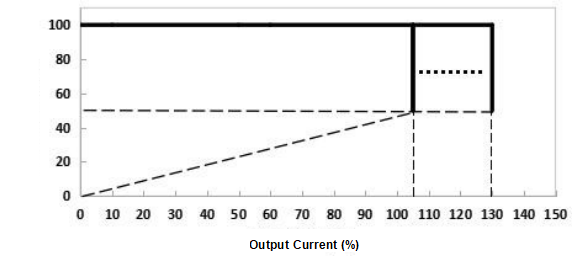

105～130% rated current, constant current mode; when the output voltage ＜50% , Hiccup mode, recovers automatically after fault condition is removed

Over temperature

Shut down output voltage； recovers automatically after temperature decreases

Short circuit

Hiccup mode, recovers automatically after fault condition is removed

Environment

Working Temp&humidity

-30~70℃；20%~95%RH non-condensing （Refer to Derating Curve）

Storage Temp&humidity

-40~80℃；10%~95%RH non-condensing

Vibration

10~500Hz,2G，10min/1 cycle,60min.each along X,Y, Z axes

Impact

20G，last 11mS，3 impacts along X, y and Z axes

Altitude

5000mtrs, the ambient temperature derating of 0.6 ℃/100m for operating altitude higher than 2000m

MTBF

Under 25℃：100000Hrs, Telcordia SR-332 issue3 Method

Size

125*113*42m

Packing

TBD Kg/PCS；20 PCS/CARTON

Cooling method

☑free air convection □with fan

*In order to extend the service life, it is recommended to leave 30% more allowance when loading. For example, if the equipment needs 100W power, please choose the power supply over 130W.

*Ripple&noise are measured at 20MHz of bandwidth by using a 12’’ twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

*All parameters NOT specially mentioned are measured at 230VAC input,rated load and 25℃ of ambient temperature。

*the auxiliary heat dissipation of aluminum plate with an area of 400 * 400 * 3mm must be used when full load working.

*The power supply is considered a component which will be installed into a final equipment.The final equipment must be re-confirmed that it still meets EMC directives.All our EMC tests are carried out by mounting samples on metal plates.
