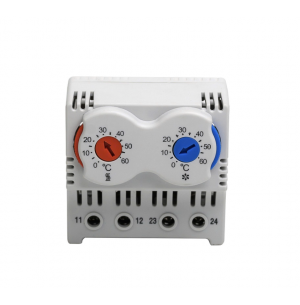

VFHT
TEMPERATURE CONTROL DUAL THERMOSTAT
| MODELS | UNIT | VFHT |
| CONTACT FUNCTION | - | NC+NO |
| TEMPERATURE SETTING RANGE | °C | 0-60 / 0-60 |
| COLOUR OF POTENTIOMETER | - | RED + BLUE |
| 250V AC / 120V AC | A | 10 (2) / 15 (2) |
| SENSOR TYPE | - | BIMETAL |
| CONTACT TYPE | - | SNAP ACTION |
| SERVICE LIFE | Cycle | > 100.000 |
| ELECTRICAL CONNECTIONS | - | 4-POLE TERMINAL |
| PLASTIC MATERIAL | - | UL94 VO ABS FLAME RETARDANT |
| PROTECTION DEGREE | EN60529 | IP20 |
| OPERATING TEMPERATURE | °C | -25/ +80 |
| STORAGE TEMPERATURE | °C | -45/ +80 |
| MOUNTING | - | CLIP FOR MOUNTING on DIN RAIL 35mm |
| INSTALLATION POSITION | - | VARIABLE |
| CONFORMITY | - | CE |
| DIMENSIONS HxWxD | mm | 60x60x41 |
