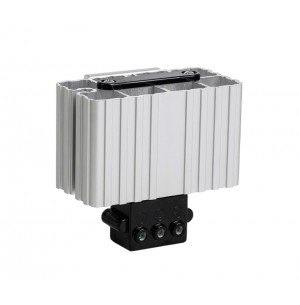

VPH015
PTC HEATER
| FEATURES | UNIT | VPH015 |
| HEATING CAPACITY | W | 15 |
| POWER SUPPLY | V | 100-250V AC DC |
| HEATING ELEMENT TYPE | - | PTC RESISTOR, SELF REGULATING |
| OVERCURRENT PROTECTION | - | ELECTRONIC THERMAL OVERLOAD |
| ELECTRICAL CONNECTIONS | - | 3 POLE TERMINAL N-L-E |
| PROTECTION CLASS IEC | - | CLASS II |
| PROTECTION DEGREE EN60529 | - | IP20 |
| OPERATING TEMPERATURE | °C | -45/ +70 |
| STORAGE TEMPERATURE | °C | -45/ +70 |
| RADIATOR | - | ALUMINIUM PROFILE, ANODIZED |
| MOUNTING | - | CLIP FOR MOUNTING on DIN RAIL 35mm |
| INSTALLATION POSITION | - | BEST EFFICIENCY IN VERTICAL POSITION |
| DIMENSIONS HxWxD | mm | 84x84x54 |
| CONFORMITY | - | CE |
