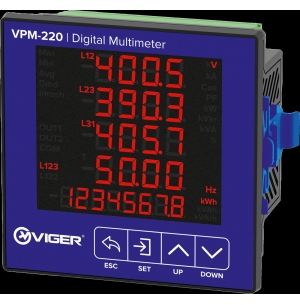

VPM-220

Features

* Supports 3P3W and 3P4W connections.

* 4x4 digits and 1x8 digits LED display.

* It shows the active ( P1, P2, P3, ∑P) powers of each phase and total.

*It shows the reactive ( Q 1, Q2, Q3, ∑Q inductive or capacitive) powers of each phase and the total.

* It shows the apparent ( S1, S2, S3, ∑S) powers of each phase and in total.

* It shows the power factor (PF) and Coscp values for each phase and in total.

* It shows the min., max., and average values of phase-to-neutral and phase-to-phase voltage (V).

* It shows the current values of each phase and total current ( 11, I2, 13,∑I).

* It shows the import and export active (∑kWh) energies of each phas and the total.

* It shows the inductive and capacitive reactive (∑kVArh) energies of each phase and the total.

* It shows the voltage and current unbalancing.

* It shows the current, active and apparent power demands.

* Energy and demand values can be deleted.

* It shows the phase sequence.

* Voltage and current transformer values can be entered.

* The menu is password protected.
